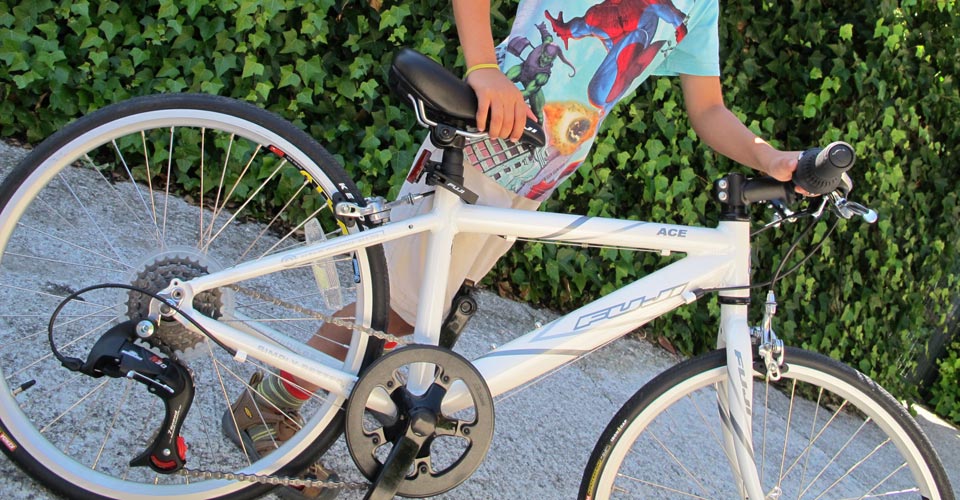

ACE 24

ACEの24インチホイールバージョン。およそ130cmぐらいの身長から乗車可能。

  • ACE 24(Black/Citrus)

SPECIFICATIONS

Price
(完成車)¥56,000(税別)
Sizes
13.5"
Color(s)
Black/Citrus
Main frame
A1-SL alloy, forged-road dropout w/ replaceable derailleur hanger
Fork
Fuji 1 1/8" custom-aero steel
Crankset
Alloy, 48/40T, 152mm
Bottom bracket
Semi-cartridge bearing
Pedals
Fuji Road
Front derailleur
Shimano TX35, 31.8mm clamp
Rear derailleur
Shimano Tourney, 7-speed
Shifters
Shimano A050, handlebar mount, 7-speed
Cassette
Shimano Tourney, freewheel, Mega Range 14-28T, 7-speed
Chain
KMC HV500, 7-speed
Wheelset
Vera Corsa DPM27, double wall, 20/24h, Formula road hubs
Tires
Vera Helios, 24×1", 60tpi
Brake set
Alloy dual pivot
Brake levers
Fuji aero alloy
Headset
FSA 1 1/8" threadless
Handlebar
Fuji 6061 alloy Road, 26mm
Stem
Fuji Road,75mm
Tape/grip
Fuji foam wrap
Saddle
Oval Concepts 300 Youth
Seat post
Fuji alloy, 27.2mm
Weight
10.21kg

MATERIAL

A1
A1-SLアルミニウム
ハイグレードなプレーン管をFUJIの培ったノウハウで組み上げ、弾力感のあるフレームになっている。

GEOMETORY

適応身長表(PDF)
Size13.5"
Seat Tube, Center to Top345
Top Tube, Effective477
Head Tube110
Seat Tube Angle74.5
Head Tube Angle71
Chainstay365
Wheelbase909
Fork Offset45
Bottom Bracket Drop35
Standover623
Stem75
Handlebar Width360
Crank152
