• SLM 29er 2.0
  • プレスフィットBBを採用した新フレームは、軽量化とBB周りの剛性が向上。より機敏な動きが可能となった。29インチモデルも登場し、お好みのライディングスタイルでバイク選択が可能に。

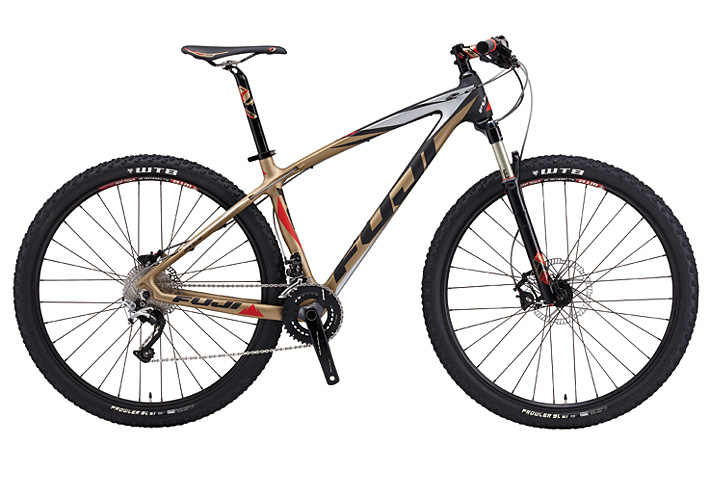

  • Photo
  • Color(S)
  • Satin Carbon/Brown/Red
  • Price
  • (完成車)¥325,500(本体価格¥310,000)
  • Size
  • 15.5”, 17.5”, 19”
  • Main frame
  • C4 superlight high modulus carbon, integrated T-T construction w/ internal shift cable routing,
    shaped oversized ride tuned down tube, integrated cupped head tube, water bottle mount
  • Fork
  • RockShox Reba RLT 29” w/ 15mm thru axle and tapered alloy steerer w/ remote lockout, 100mm travel
  • Crankset
  • FSA Afterburner, 28/40T
  • Bottom bracket
  • FSA integrated MegaExo
  • Front derailleur
  • Shimano Deore XT, 34.9mm
  • Rear derailleur
  • Shimano Deore XT SGSL Shadow top normal, 10-speed
  • Shifters
  • Shimano SLX Rapid Fire, 20-speed
  • Cassette
  • Shimano SLX, 11-36T 10-speed
  • Wheelset
  • Fuji custom mountain disc 32H hubs, WTB speed disc all mountain 29 rims
  • Tires
  • WTB Prowler SL 29x2.1” cable bead folding
  • Brake set
  • Tektro Auriga Pro hydraulic disc, 180/160mm rotor
  • Brake levers
  • Tektro Auriga Pro hydraulic disc
  • Headset
  • Oval 1 1/8-1 1/2” semi-integrated, 30mm spacers
  • Handlebar
  • Oval M650 alloy flat bar, +/- 5mm rise, 9degree sweep, 710mm wide, 31.8mm
  • Stem
  • Oval M600 reverse bolt technology, alloy, 31.8mm
  • Saddle
  • Oval M600 w/ CrMo rails
  • Seat post
  • Oval M600, 31.6x350mm

GEOMETRY

SIZE 15.5" 17.5" 19"
SEAT TUBE-CENTER TO TOP 394 444 483
EFFECTIVE TOP TUBE LENGTH 587 604 623
FORK OFFSET - - -
HEAD TUBE ANGLE 70 71 71
SEAT TUBE ANGLE 73 73 73
CHAIN STAY 439 439 439
WHEELBASE 1033.4 1095 1079.5
HEAD TUBE LENGTH - - -
BOTTOM BRACKET HEIGHT 310 310 310
BOTTOM BRACKET DROP - - -
STAND OVER HEIGHT 749 774 810
CRANK LENGTH 170 175 175
STEM LENGTH 90 100 110
HANDLEBAR WIDTH - - -
