• NEVADA 29er 2.0
  • エントリーモデルながらシマノコンポーネント採用の本格派ハードテイルMTB。高い走破性が人気の29インチモデルも新たにラインナップ。

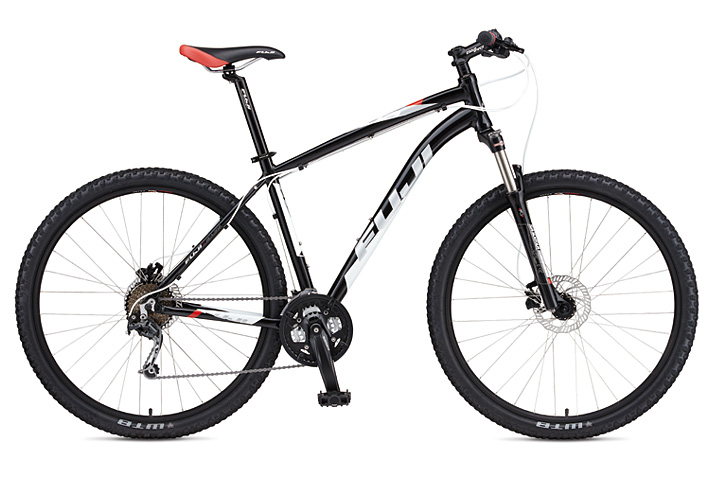

  • Photo
  • Color(S)
  • Black/Red/Gray
  • Price
  • (完成車)¥84,000(本体価格¥80,000)
  • Size
  • 15”, 17”, 19”
  • Main frame
  • Fuji A1-SL alloy w/ PowerCurve down tube, hydroformed top tube, oversized seat tube and semi-integrated head tube,double water bottle mounts
  • Fork
  • SR Suntour XCM V3 w/ mechanical lockout, 100mm travel
  • Crankset
  • Shimano Alivio, 22/32/44T
  • Front derailleur
  • Shimano Alivio, 34.9mm
  • Rear derailleur
  • Shimano Deore SGS top normal, 9-speed
  • Shifters
  • Shimano Alivio Rapid Fire, 27-speed
  • Cassette
  • Shimano HG20, 11-34T 9-speed
  • Wheelset
  • Fuji disc 32H hubs, Jalco AX 430 double wall rims
  • Tires
  • WTB Prowler SL, 29x2.1” or Hutchinson Python NG 29x2.1”
  • Brake set
  • Tektro Draco hydraulic disc, 160mm rotor
  • Brake levers
  • Tektro Draco hydraulic disc
  • Headset
  • Fuji custom 1 1/8” semi-integrated, 30mm spacers
  • Handlebar
  • Fuji alloy riser, 9degree sweep, 670mm wide, 31.8mm
  • Stem
  • Fuji forged alloy w/ removable faceplate
  • Saddle
  • Fuji-sport mountain w/ steel rails
  • Seat post
  • Fuji alloy micro-adjust, 31.6x350mm

GEOMETRY

SIZE 15" 17" 19"
SEAT TUBE-CENTER TO TOP 381 432 483
EFFECTIVE TOP TUBE LENGTH 575 590 610
FORK OFFSET - - -
HEAD TUBE ANGLE 71 71 71
SEAT TUBE ANGLE 72 72 72
CHAIN STAY 445 445 445
WHEELBASE 1062 1077 1097
HEAD TUBE LENGTH - - -
BOTTOM BRACKET HEIGHT 302 302 302
BOTTOM BRACKET DROP - - -
STAND OVER HEIGHT 790 820 851
CRANK LENGTH 170 175 175
STEM LENGTH 90 90 105
HANDLEBAR WIDTH - - -
