RACE BIKES

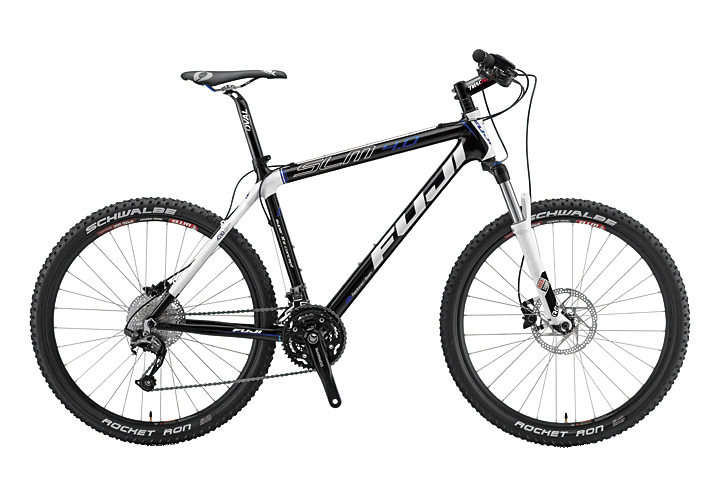

  • SLM 4.0
  • フルサス全盛の中で存在感を主張するハードテールのSLMシリーズ。
  • SLM 4.0
  • Size
  • S(15”), M(17”), L(19”)
  • Color(S)
  • Black/White/Blue
  • Price
  • (完成車)¥241,500(本体価格¥230,000)
  • Main frame
  • C-4 Super Lite High Modulus carbon w/RIB(Reinforced I Beam)& IntegratedT-T construction, Oversized seat tube, Integrated cupped head tube, Double water bottle mounts.
  • Rear triangle
  • C-4 Super Lite High Modulus carbon stays with shaped ride tuned chainstay, cold forged dropout with replaceablehanger and CNC Disc mount only option
  • Fork
  • ROCKSHOX Recon Silver TK Solo Air, 100mm Travel w/ PopLoc Remote LockOut
  • Crankset
  • Shimano M552 w/ Integrated spindle, 24/32/42T
  • Bottom bracket
  • Shimano Exterior Bearing System
  • Front derailleur
  • Shimano SLX, 34.9mm
  • Rear derailleur
  • Shimano SLX SGS Shadow Top normal 10sp
  • Shifters
  • Shimano SLX Rapid Fire, 30-speed
  • Cassette
  • Shimano SLX, 11-36T 10sp
  • Chain
  • Shimano HG-74
  • Wheelset
  • Shimano M435 Centerlock 32H hubs with WTB Speed Disc Double Wall rims
  • Tires
  • Schwalbe Rocket Ron, 26x2.1” Performance Folding
  • Brake set
  • Shimano BL-M445 hydraulic caliper 180/160mm Centerlock rotor
  • Brake levers
  • Shimano BL-M505 Hydraulic Forged Alloy Brake Lever
  • Headset
  • Fuji 1 1/8” Press Fit Integrated, sealed bearing, 30mm spacers
  • Handlebar
  • Oval M-600 Double Butted 7050 Al Flat Bar, 31.8mm
  • Stem
  • Oval M-600 RBT 2014 Al Stem 31.8mm
  • Tape/grip
  • Fuji Dual Density Kraton rubber
  • Saddle
  • Oval M-200 w/ CrMo rails
  • Seat post
  • Oval M-600 31.6x400mm
  • Weight- kg
  • 11.13kg

GEOMETRY

SIZE XS(15") S(17") M(19")
SEAT TUBE-CENTER TO TOP 612.8 676.3 749
EFFECTIVE TOP TUBE LENGTH 555.9 579.9 595
FORK OFFSET - - -
HEAD TUBE ANGLE 70 70 70
SEAT TUBE ANGLE 73 73 73
CHAIN STAY 415 420 425
HEAD TUBE LENGTH - - -
